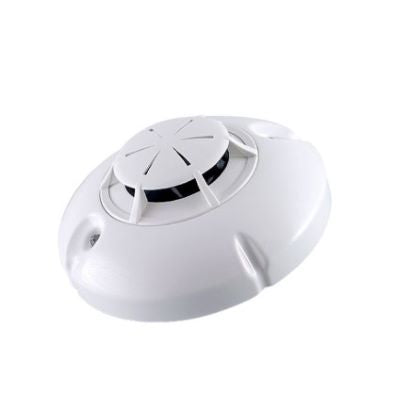

Lämpöilmaisin Unipos. 10-30V DC

FD8020S Lämmönnousuilmaisin Unipos – 58 astetta

Käyttöjännite: 10-30VDC
Hälytyslähtö: no ja nc ( relekannalla )

Rate of rise heat detector (normal temperature) – UL certified model of 8020 A2R.

The fire detectors FD8020R and FD8020S provide reliable early warning of a fire condition upon ambient temperature reaching a fixed temperature threshold. They are available in two versions (A2R for FD8020R and A2S for FD8020S) depending on the temperature threshold in accordance with the European Standard EN54-5. The fire detectors are suitable for premises with normal or high ambient temperature, with possible sudden changes. Fixed Heat Detector (normal temperature) – UL certified model of 8010S also available – part number: FD8020S.

Technical Features
Supply Voltage (10-30)V DC
Current Consumption in Duty Mode 80 μA / 24V DC
Fire Condition Current with base type DB8000: (8-25) mA
Terminals for wires with cross-section (0.5-1.5) mm²
degree of protection: IP43 (not verified by UL)
Operational Temperature Range minus 10°C – plus 50°C
Relative Humidity Resistance (93±3)% at 40°C
Sensitivity and Temperature Class in accordance with EN54-5, category A2S for
FD8020S and category A2R for FD8020R
Mounting bases of series 50
Dimensions, Base Included Ø100 mm, h 47mm
Casing Material ABS plastics, white
Weight, Base Included 0.100 kg
Protected Area circle with diameter 10m, h 8m

Kysy lisätietoja tai pyydä tarjous.

Meiltä myös turvallisuusjärjestelmien suunnittelu-, asennus- ja huoltopalvelut

Puh. 050 3232 330
info@cmt-tekniikka.fi
