Kaksoisliikeilmaisin PIR/MW, AM – GRADE3

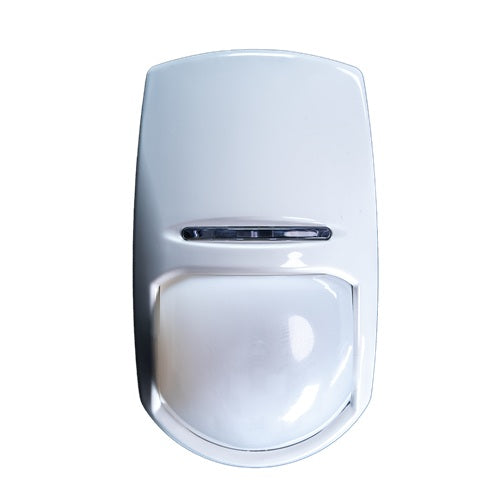

Pyronix KX15DTAM Kaksoisliikeilmaisin PIR/MW - Anti-Masking – Grade3

• EN 50131 -standardin vaatimusten mukainen Grade 3
• Säädettävä liikkeentunnistusalue: 15/18m, 85°
• Blue Wave Technology (BWT)
• Päätevastukset 6K8, 5K6, 4K7 &1K
• Asennuskorkeus: 2,4m
• Jännite: 9-16 VDC
• Virta: 24mA/30mA
• Mitat: 117 x 69 x 50 mm
• CE, EN50131-2-4:2008, EN50131-1, PD6662:2017

__________________________________

Optical & Range Features
Adjustable Anti-asking (Anti-spray) ✓
Volumetric coverage ✓
Curtain coverage ✓
Long range coverage ✓
Maximum range 15m / 18m
Optimal installation height 1.8-2.4m
Creep-zone protection ✓

Technical Characteristics
Animal Immune O
Blue Wave Technology ✓
Automatic sensitivity ✓
Digital temperature compensation ✓
Anti-cloacking technology AND/OR ✓
Separate indication: Microwave, PIR and Alarm ✓
3 microwave frequencies to avoid interference ✓
EOL resistors on board ✓
Tamper protection included ✓

Accessories
Wall/Ceiling brackets included (KXBRACKET-C, KXBRACKET-W) ✓
Long range and curtain lenses included (KX30-LR e KX18-LC) ✓
Anti-tamper kit included (KX-TAMPER) ✓

Certification & Warranty
Electrical conformity CE
EN50131 Grade 3
Environmental class II
CA12.01176
