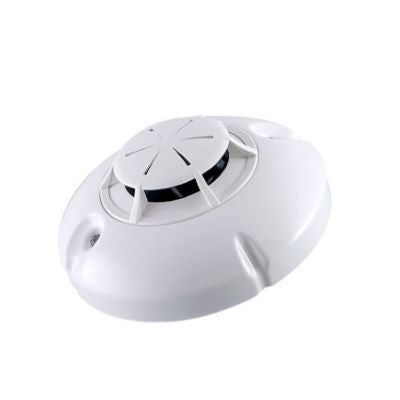

Yhdistelmäilmaisin Unipos. 10-30V DC

FD8060 yhdistelmäilmaisin optinen savu/ lämmönnousu

Käyttöjännite: 10-30VDC
Hälytyslähtö: no ja nc ( relekannalla )

The fire detector FD8060 combines the advantages of a type FD8020S and a type FD8030. It is an attractive option due
to decreased expenses for supply and installation. The detector complies with the requirements of the European Standard
N54-5 (temperature category A2R) and EN54-7.

Supply Voltage (10-30)V DC
Current Consumption in Duty Mode 130 μA / 22.5V DC
Fire Condition Current with base type DB8000: (8-25) mA
Terminals for wires with cross-section (0.5-1.5) mm²
degree of protection: IP43 (not verified by UL)
Operational Temperature Range minus 10°C – plus 50°C
Relative Humidity Resistance (93±3)% at 40°C
Sensitivity and Temperature Class in accordance with EN54-7 and EN54-5, category A2R
Mounting bases of series 50
Dimensions, Base Included Ø100 mm, h 52mm
Casing Material ABS plastics, white
Weight, Base Included 0.100 kg
Protected Area circle with diameter 10m, h 8m

Kysy lisätietoja tai pyydä tarjous.

Meiltä myös turvallisuusjärjestelmien suunnittelu-, asennus- ja huoltopalvelut
